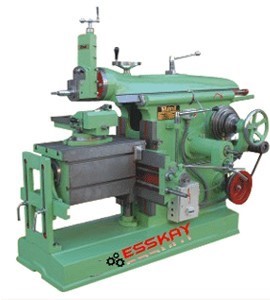

Shaper Machine India Manufacturers And Exports Shaper Machines
Shaping machine is a machine tool for shaping metal or wood, the work piece turns about a horizontal axis against a fixed tool. It can cut curves, angles and many other shapes according to demand and requirement. It is a popular machine in India because its movement is very simple although it can produce a variety of work. It uses the linear relative motion. It can form flat surfaces and cutting tool moves with a reciprocating motion.
The shaper machine is a machine tool used primarily for: Producing a flat or plane surface which may be in a horizontal, a vertical or an angular plane. Making slots, grooves and keyways. Producing contour of concave/convex or a combination of these.
The main parts of shaping machine are as under:
- Ram
- Table
- Clapper box
- Tool head
- Column
- Cross Rail
- Stroke Adjustment
- Table Supports
- Base
The ram is the major component of the shaper machine India. It has the tool post attached with cutting tool, and a worktable which is used for holding the part and also capable for motion. Ram moves in the forward and backward directions. The shaper machine manufactures make machines enough capable which has power to cut and shape metal or other strong materials.
PRODUCTS

MODEL | ESH-12 | ESH-18 | ESH-24 | ESH-30 | ESH-36 | ESH-42 |
---|---|---|---|---|---|---|
Length of ram stroke: | 12" /305 mm | 18" / 457 mm | 24" /610 mm | 30" / 762 mm | 36" / 915 mm | 42" / 1070 mm |
Length of ram (mm): | 711 | 960 | 1232 | 1410 | 1651 | 2108 |
Length x Width of Ram bearing (mm): | 724 x 203 | 700 x 270 | 867 x 300 | 1020 x 330 | 1130 x 330 | 1600 x 330 |
Distance from Table to Ram Max / Min (mm): | 257 / 41 | 360 / 75 | 450 / 76 | 510 / 75 | 565 / 102 | 600 / 102 |
Working Surface of table (mm): | 305 x 228 | 457 x 305 | 610 x 370 | 762 x 390 | 915x 457 | 1078 x 533 |
Horizontal Table Travel Max (mm): | 330 | 486 | 635 | 787 | 940 | 1075 |
Vertical Table Travel Max (mm): | 140 | 330 | 380 | 450 | 525 | 585 |
Angular Movement of Table (degrees): | 60L /60R | 60L / 60 R | 60L/60R | 60L/60R | 60L/60R | 60L/60R |
Vertical Travel of Tool Slide Max. (mm): | 140 | 152 | 190 | 203 | 255 | 300 |
Swivel of Tool Head Max. (degrees): | 60L /60R | 60L /60R | 60L /60R | 60L /60R | 60L /60R | 60L /60R |
Base Length x Width (mm): | 940 x 483 | 1346 x 502 | 1676 x 610 | 1829 x 660 | 1980 x 660 | 2286 x 762 |
Diameter of Clutch Pulley (mm): | 235 | 311 | 311 | 311 | 380 | 380 |
Number of Ram Speeds: | 3 | 4 | 4 | 4 | 4 | 4 |
Ram Speeds (Strokes per Minute): | 30, 60, 90 | 16, 32, 64, 96 | 14, 28, 42, 62 | 8, 16, 32, 48 | 10, 20, 30, 50 | 8, 16, 32, 48 |
Motor Pulley Diameter (mm): | 51 | 70 | 70 | 76 | 88 | 88 |
Motor (HP / RPM): | 1/1440 | 2 / 1440 | 3 / 1440 | 5/960 | 7.5/960 | 10/960 |
'V' Belt Section | B-55 | B-55 | B-55 | B-58 | B-70 | B-75 |
Approximate net / Gross weight (kilos): | 700/ 850 | 1200 / 1500 | 1850 / 2100 | 2300 /2600 | 3500 / 3900 | 4000 / 4500 |
Overall size of the machine - L x WxH (mm): | 1.25 x 0.8 x 1.4 | 1.6 × 1.0 x 1.4 | 2.0 x 1.1x 1.6 | 2.2 x 1.25 x 1.6 | 2.5x 1.4 × 1.7 |
