Milling Machine Manufacturers And Exporters In India With Best Quality And Prices

Milling machine may be defined as the type of machine in which the metal is removed by causing the job to be fed against a revolving cutting tool called the miller cutter. There are rotary cutters which covers a wide variety of different operations. It is capable to perform its operations at small scale to larger and also heavy duty milling tasks. Now days it is commonly used for various processes in the industry and also in machine shops to provide accurate sizes and shapes of machining parts. Milling can also be done with wide range of tools. After the invention of CNC milling machines the features comes with CNC are control, automatic tool charger, carousels and coolant systems.

Uses of milling machine

Basically, a milling machine performs variety of operations such as shaping flat and irregular surfaces, boring, drilling, and planning, cutting gears, routing and producing slots among others.

Types of milling machine

There are two categories of milling machines- the vertical mills and the horizontal mills. The vertical mills have a vertical orientation of the spindle axis, while the horizontal mills employ a horizontal orientation of the spindle axis. There are also some other types of milling machines are available like ram-type, knee-type, manufacturing or bed type and planer-type. In milling machines there are many shapes and sizes of cutters are available. Milling machine can cut grooves, dove tails, flat surfaces and T- slots.

Esskay Machine Tools is one of the largest manufacturers of milling machines, lathe machines, and drilling machines, supplying high-quality products across India.

PRODUCTS


Description ESSVM-1 ESSVM-2 ESSVM-3 ESSVM-4

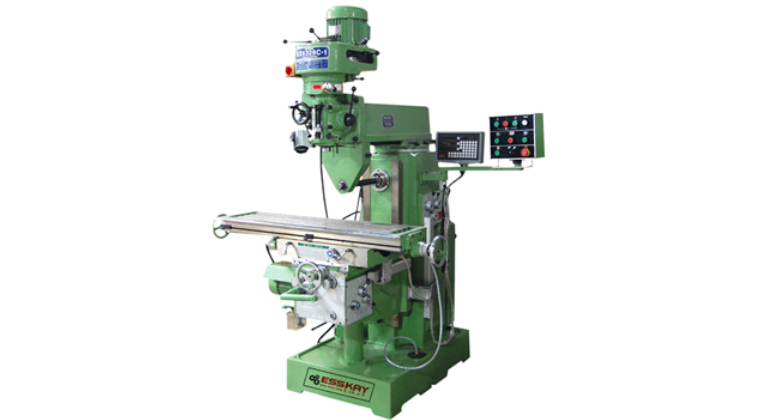

Technical Specifications of Ram Turrent & Universal Milling Machine 9" x 40* 220 x 975 mm 10.5° x 48* 260 x 975 mm 13" x 60 525 x 1470 mm 15" x 70° 365 x 1700 mm
Table Size of Vertical & Horizontal Drive Milling Machine 220 x 975 mm 260 x 1200mm 325 x 1470 mm 365 x 1700 mm
Longitudinal Travel 535 675 810 1000
Vertical Travel 345 450 520 525
Cross Travel 245 340 368 450
Table to Spindle 0 Min. 0 Min. 0 Min. 0 Min.
Head Tilt 45° Up & Down --do-- --do-- --do-- --do--
Head Move 90° Left & Right Horizontal --do-- --do-- --do-- --do--
Quill Spindle diameter 90mm Hardened & Grinded 90mm Hardened &. Grinded 90mm Hardened & Grinded 90mm Hardened & Grinded
Head & Ram Rotate Parellel On body 360° 360° 360° 360°
Quill Spindle Travel 125mm 125mm 125mm 125mm
Ram Travel 250 300 440 440
T-Slot 3-12mm 3-16mm 4-16 4-16
Motor2 H.P. 1 H.P. 2 H.P. 2 H.P. 2 H.P.
No. Of Speeds 8 Min. 75 RPM Max. 3000 RPM 8 Min. 75 RPM Max. 3000 RPM 8 Min. 75 RPM Max. 3000 RPM 8 Min. 75 RPM Max. 3000 RPM
Max. Weight of Work Piece 250 Kg. 750 Kg. 1000 Kg. 1500 Kg.
Net Weight of Machine 1050 Kg. 1550 Kg. 1850 Kg. 2400 Kg.
Overall Height, Width & Length 1800 x 1200x 1300 2100 x 1500 x 1800 2200x 1764X 2000 2200 x 2050 x 2100

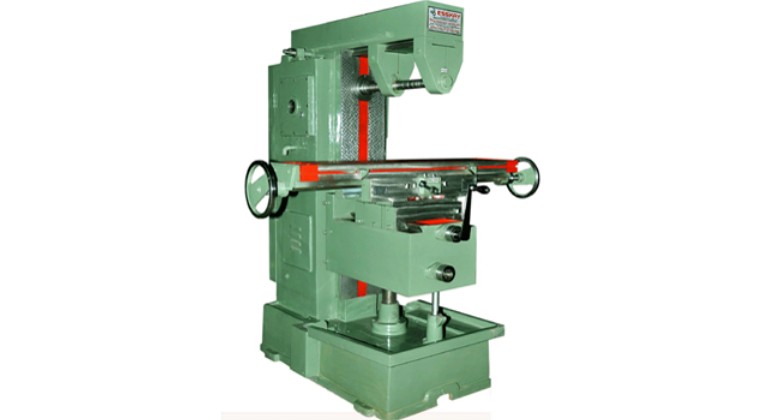

MODEL EUM - 0A EUM - 01 EUM - 02 EUM - 03 EUM - 04
SURFACE OF TABLE 32 × 7" 42 × 9* 48 X 10" 52 X 11" 60 X 12"
NO. OF TEE- SLOTS 3 3 3 3 3
SIZE OF TEE - SLOTS 1/2" 1/2" 1/2" 5/8" 5/8"
SWIVEL OF TABLE 45° 45° 45° 45° 45°
LONGITUDINAL TRAVERSE 15" 21" 24" 26" 30"
CROSS TRAVERSE 6" 7" 8" 10" 10"
VERTICAL TRAVERSE 13" 15" 16" 22" 22"
STANDARD ARBOR 1" 1" 1" 1" 1"
TAPER OF SPINDLE ISO - 30 ISO - 40 ISO - 40 ISO - 40 ISO - 40
RPM OF SPINDLE 95-650 95-650 65 - 680 60 - 700 50 - 750
NO. OF SPINDLE SPEED 6 6 9 9 9
ELECTRIC MOTOR 1 H.P. 2 H.P. 2 H.P. 3 H.P. 5 H.P.
WEIGHT APPROX 500 KGS 1000 KGS 1250 KGS 1700 KGS 2050 KGS

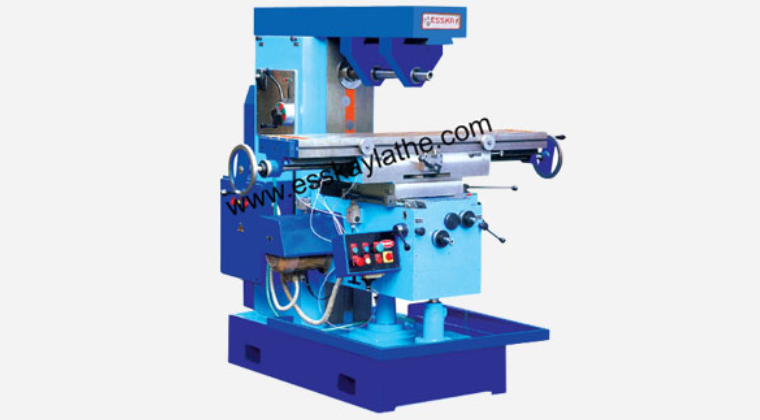

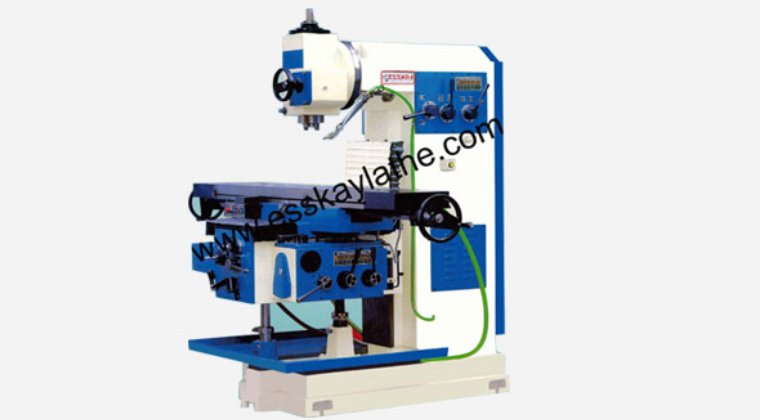

SPECIFICATIONS ALL GEARED UNIVERSAL MILLING MACHINES
MODEL EUMA-2 EUMA-3 EUMA-4 EUMA-5
TABLE
Working Surface 1300×300 1400×330 1600×350 1800×400
T.Slot Nos/Size 3.16 T NUT 3.22 T NUT 3.22 T NUT 3.22 T NUT
T.Slot Centre 70 80 85 90
Swivel +45° +45° +45° +45°
Longitudinal Travel By Power X 700 800 1000 1200
Cross Travel By Power Y 215 260 Text 340 380
Vertical Travel By Power Z 450 510 600 650
FEEDS
NO. Of Feeds 18 18 18 18
Range Of Longitudinal Feed/Min. 23-420 23-420 23-420 23-420
Range Of Cross Feed/Min. 23-420 23-420 23-420 23-420
Range Of Vertical Feed/Min. 3-70 3-70 3-70 3-70
No. Of Rapid Feed 1 1 1 1
Rapid Long & Cross/Min. 1050 1050 1050 1050
Rapid Vertical/Min. 175 175 175 175
SPINDLE
No. Of Spindle Speeds. 12 12 12 12
Range Of Spindle Speeds. 40 to 1200 RPM 40 to 1200 RPM 40 to 1200 RPM 40 to 1200 RPM
Spindle Taper ISO - 40 ISO - 40 ISO - 40 ISO - 40
Aorbor Diameter 25.4 25.4 32 40
POWER
Main Motor 3 H.P. 5 H.P. 7.5 H.P. 10 H.P.
Feed Motor 2 H.P. 2 H.P. 3 H.P. 3 H.P.
Coolant Motor 0.1 H.P. 0.1 H.P. 0.1 H.P. 0.1 H.P.
SHIPPING DIMENSIONS
Length x Width x Height(In Cms.) 173 X137 X 200 182 X160 X 218 198 X168 X 234 210 X 180 X 255
Net Weight K.gs. 2200 3200 3700 4500
Gross Weight K.gs. 2600 3700 4300 5000
Features

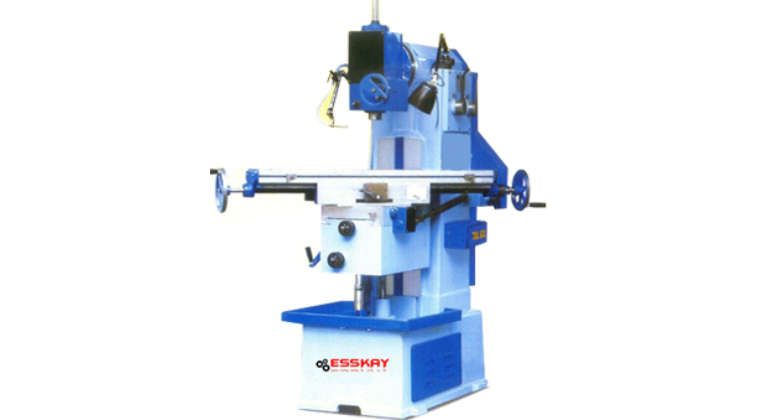

Vertical Milling Machine


MODEL No. ESSKAY - OA ESSKAY - 1 ESSKAY - 11/2 ESSKAY - 2 ESSKAY - 3
Surface of Table 32" * 7" 42" * 9" 48" * 10" 52" * 11 60" * 12"
No. of tee-slots 3 3 3 3 3
Size of Table 1/2" 1/2" 1/2" 1/2" 1/2"
Swivel of Table 45 45 45 45 45
Longitudinal Traverse 15" 21" 24" 26" 30"
Cross Traverse 6" 7" 8" 10" 12"
Vertical Traverse 13" 15" 16" 22" 26"
Standard Arbor 1" 1" 1" 1" 1"
Taper of Spindle ISO-30 ISO-40 ISO-40 ISO-40 ISO-40
RPM of Spindle 95-650 95-650 65-680 60-700 50-750
No. of Spindle Speed 6 6 9 9 9
Electric Motor Require 1 H.P. 2 H.P. 2 H.P. 3 H.P. 5 H.P.
Weight Approx 500 kgs 1000 kgs 1250 kgs 1700 kgs 2050 kgs
SPECIFICATIONS ALL GEARED VERTICAL MILLING MACHINES
MODEL EVMA-2 EVMA-3 EVMA-4 EVMA-5
TABLE
Working Surface 1300×300 1400×330 1600×350 1800×400
T.Slot Nos/Size 3.16 T NUT 3.22 T NUT 3.22 T NUT 3.22 T NUT
T.Slot Centre 70 80 85 90
Longitudinal Travel By Power X 700 800 1000 1200
Cross Travel By Power Y 215 260 340 380
Vertical Travel By Power Z 450 510 600 650
Min. Distance From Left Hand Table End To Spindle Center 250 300 350 400
Max. Safe Weight On Table 300 400 600 800
FEEDS
NO. Of Feeds 18 18 18 18
Feed Range : Long & Cross 23-420 23-420 23-420 23-420
Vertical 3-70 3-70 3-70 3-70
Rapid Traverse: Long & Cross 1050 1050 1050 1050
Vertical 175 175 175 175
MILLING SPINDLE
No. Of Spindle Speeds. 12 12 12 12
Range Of Spindle Speeds. 40-1200 40-1200 40-1200 40-1200
Spindle Nose ISO - 40 ISO - 40 ISO - 40 ISO - 40
Min./Max. Distance, Centre Milling Spindle/Lower Face Of Milling Spindle To Table Top Surface 40-450 60-510 60-600 60-650
Distance 3pindle Centre To Column 320 350 370 400
Face Vertical Mavement Of Quill 75 95 95 100
Swivel Of Miling Head On Ether Side 45° 45° 45° 45°
POWER
Main Motor 3 H.P. 5 H.P. 7.5 H.P. 10 H.P.
Feed Motor 2 H.P. 2 H.P. 3 H.P. 3 H.P.
Coolant Motor 0.1 H.P. 0.1 H.P. 0.1 H.P. 0.1 H.P.
SHIPPING DIMENSIONS
Length x Width x Height(In Cms.) 188 X157 X 208 213 X175 X 234 246 X188 X 248 260 X 200 X 260
Net Weight K.gs. 2200 3200 3700 4500
Gross Weight K.gs. 2600 3700 4300 5000
